Diffuser V1+ – Toyota MR2 Spyder (ZZW30, 2000-2005)

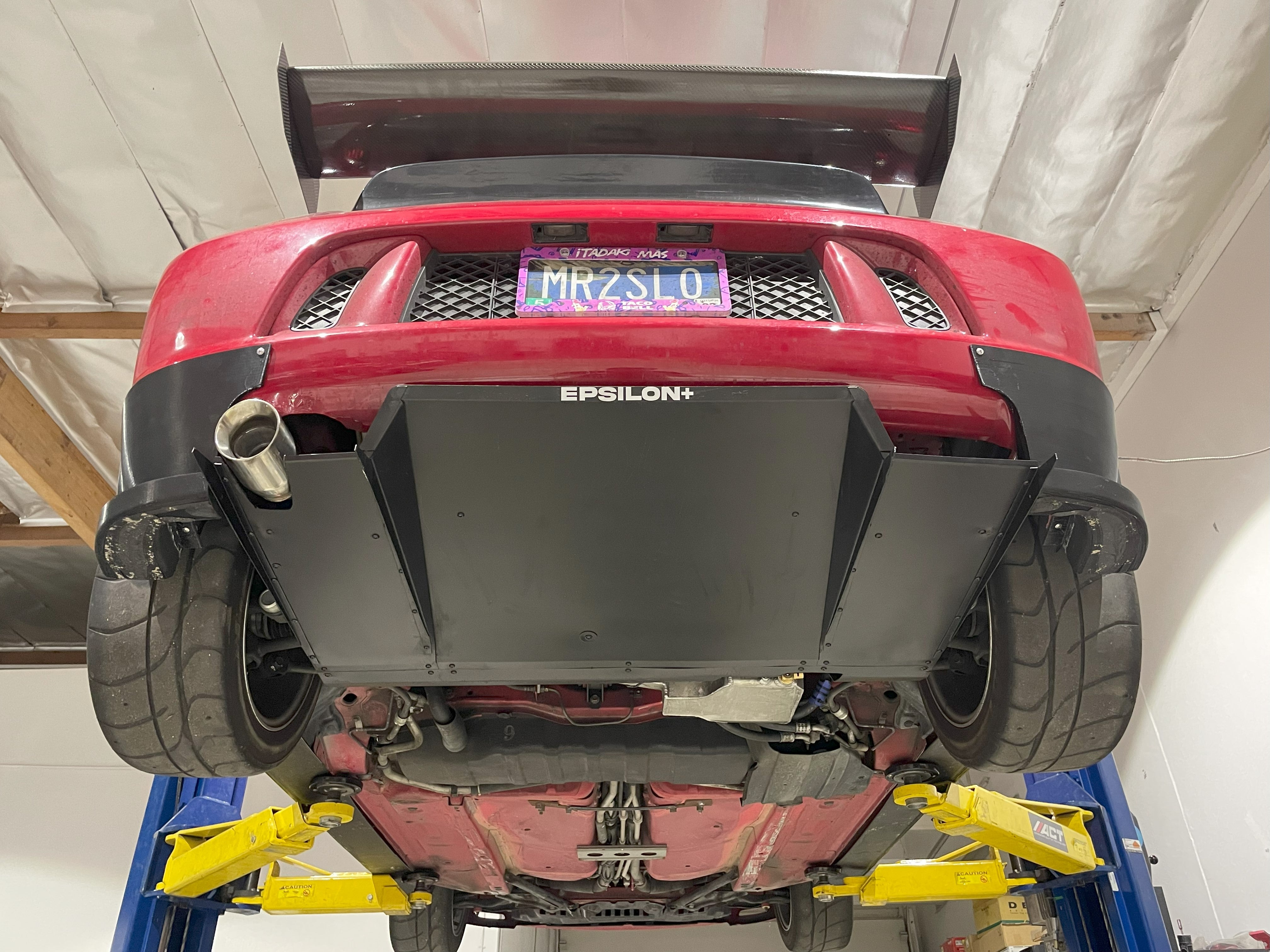

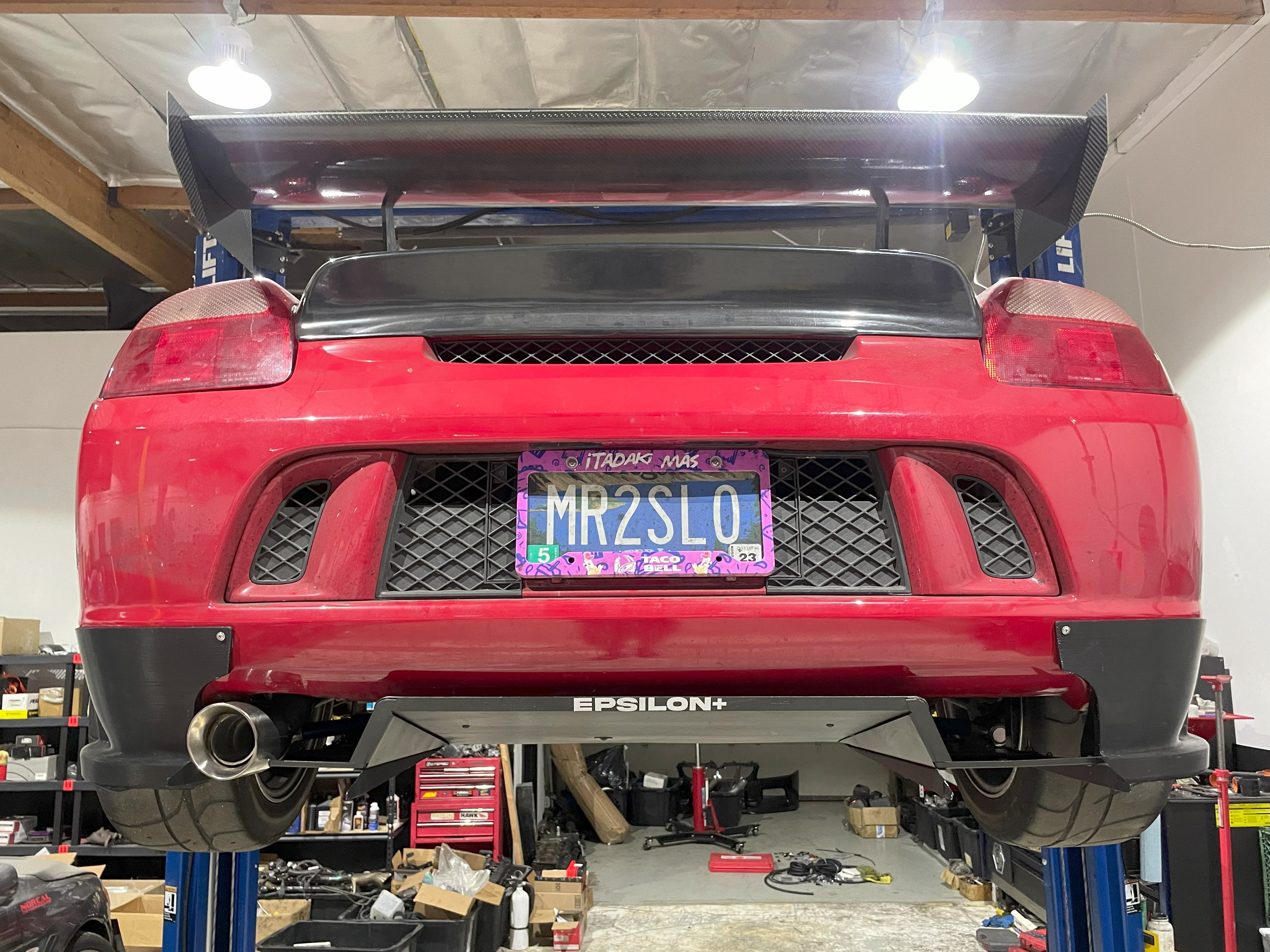

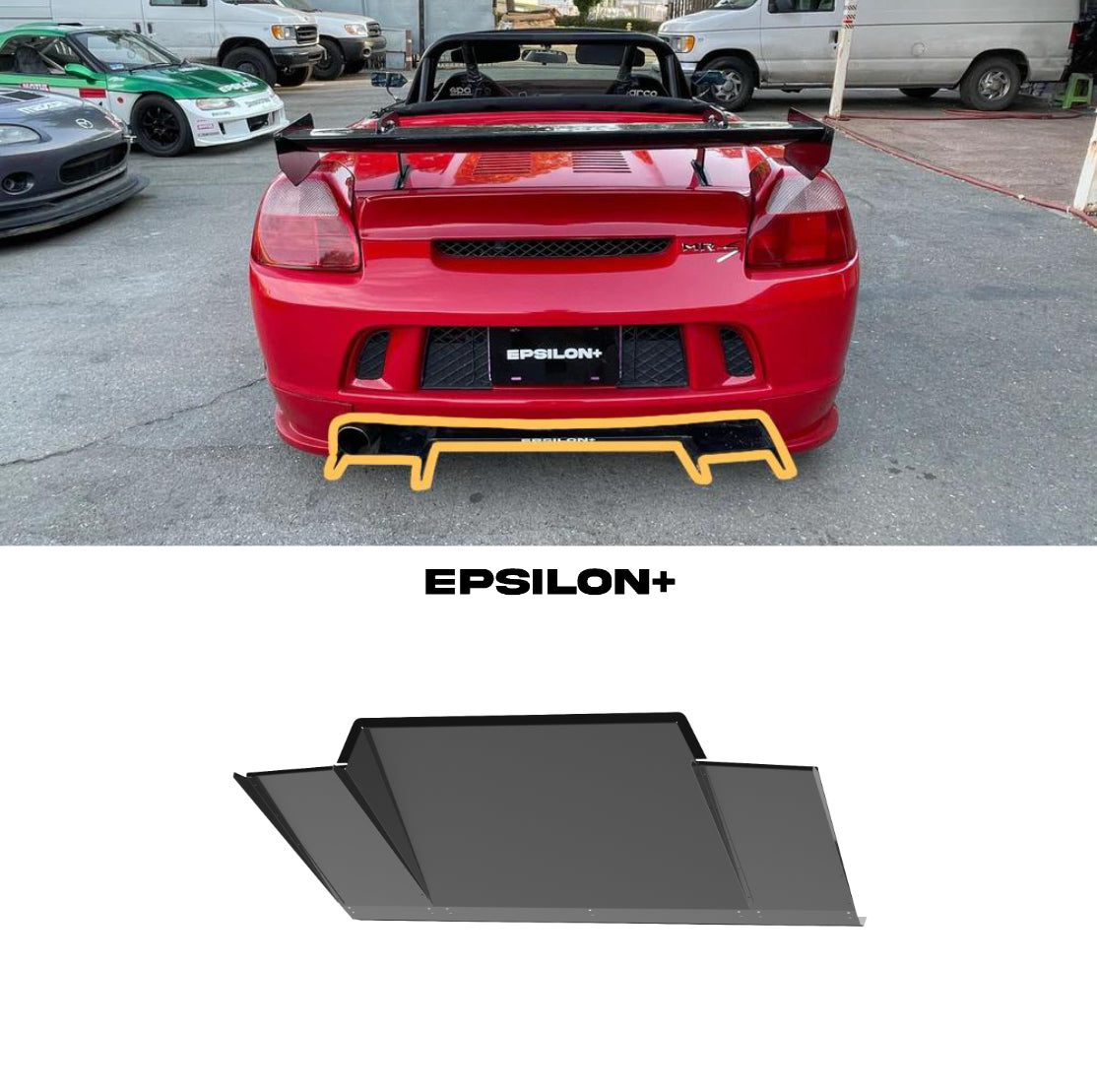

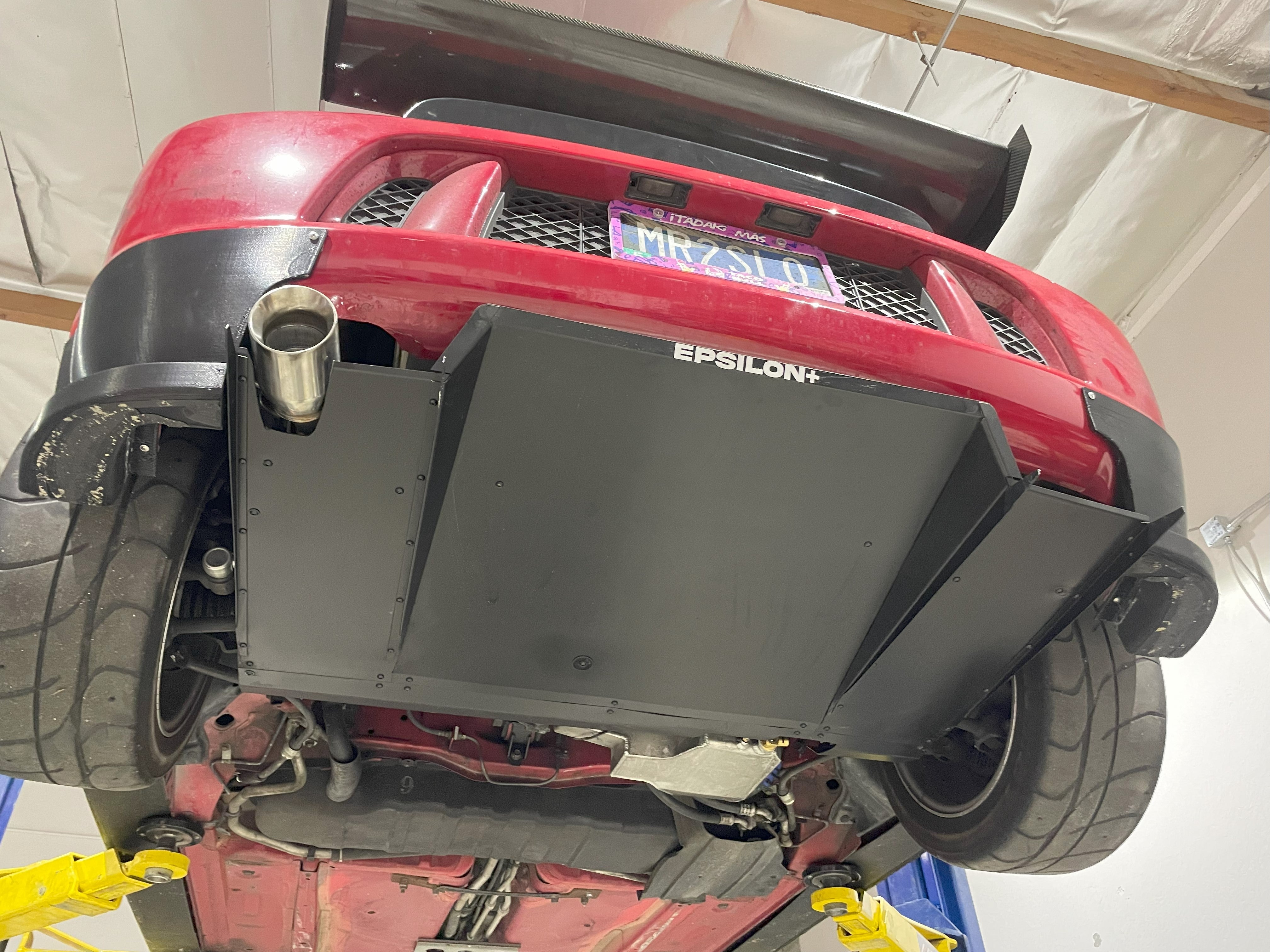

Our rear diffuser for the Toyota MR2 Spyder (ZZW30, 2000–2005).
Made from 5052 aluminum and comes powder-coated satin black. Includes all hardware needed to install, however adjustments may be needed on individual cars to optimize drag reduction.
Important Order Info
Made to order — please allow 4–5 weeks for fulfillment. We will contact you to confirm details before shipment.
Key Features
Functional design: Unlike many diffusers that just trap air inside the bumper, our design gently leads air out from under the subframe to reduce drag.
Clears most exhausts: The folded aluminum construction was chosen to optimize strength, cost, heat resistance, and exhaust clearance.
Durable mounting: Steel braces and brackets are designed to be strong but flexible — if you manage to bend the diffuser, all you need to do is bend it back!
Vehicle-specific notes

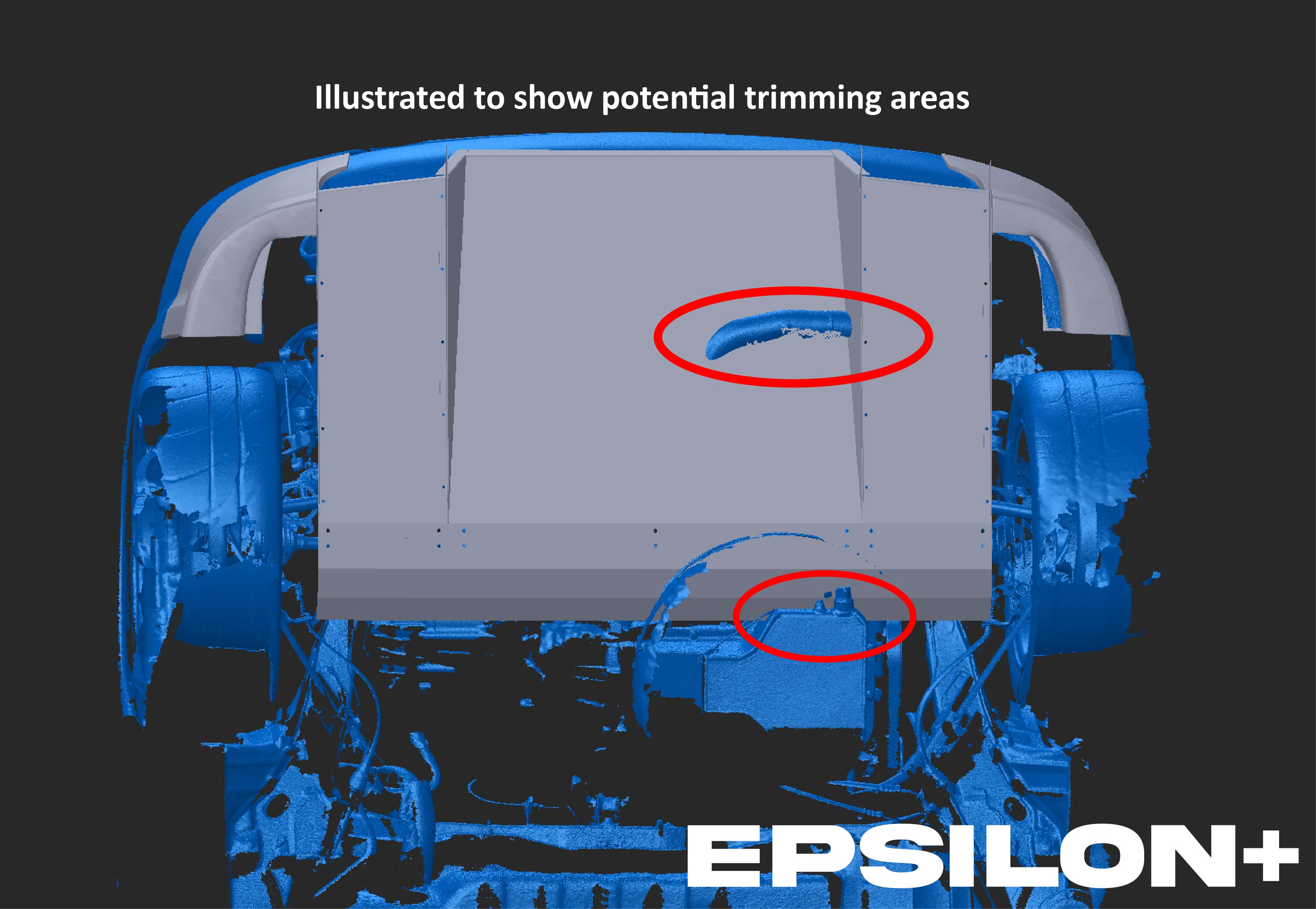

- The leading edge will need to be trimmed to clear the oil pan, depending on whether you have a 1ZZ, 2ZZ, or aftermarket baffled pan.
- Depending on your exhaust setup, you may need to trim the diffuser to clear exhaust piping. If the exhaust does not go below the rear subframe, you should be fine.

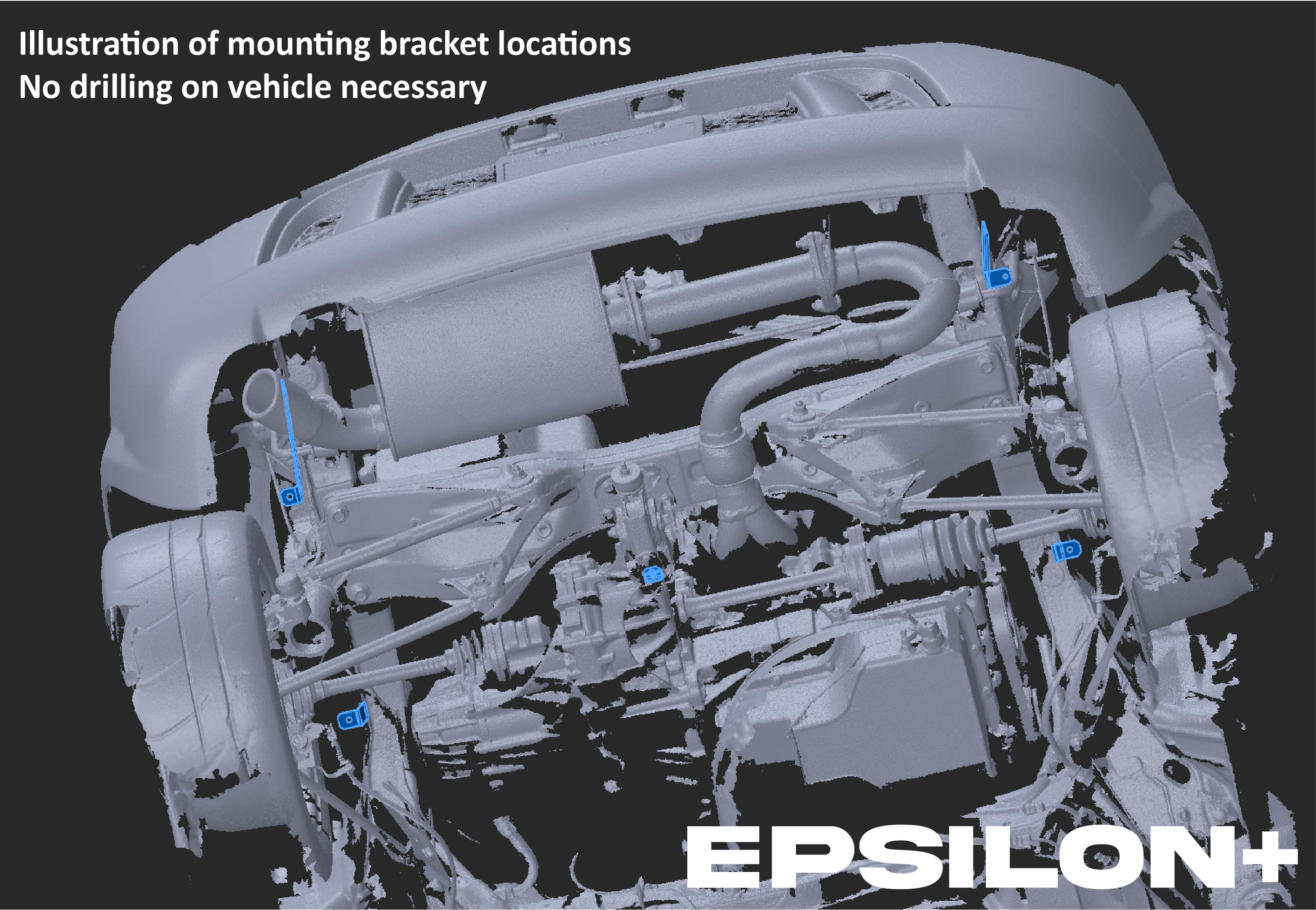

- 5 brackets are included for diffuser mounting. The forward two use existing holes. The rearward two require holes to be drilled and are adjustable for your specific placement needs.
