EPSILON+ GT Wing – Mazda RX-7 (FD, 1992-2002)
Order Notes: Carbon and FRP wing elements are kept in stock, however there is a turnaround time to get specialty stands/base mounts made for hatchback and certain applications. Please allow 3-4 weeks for us to make and assemble the vehicle-specific portions of the kit together.

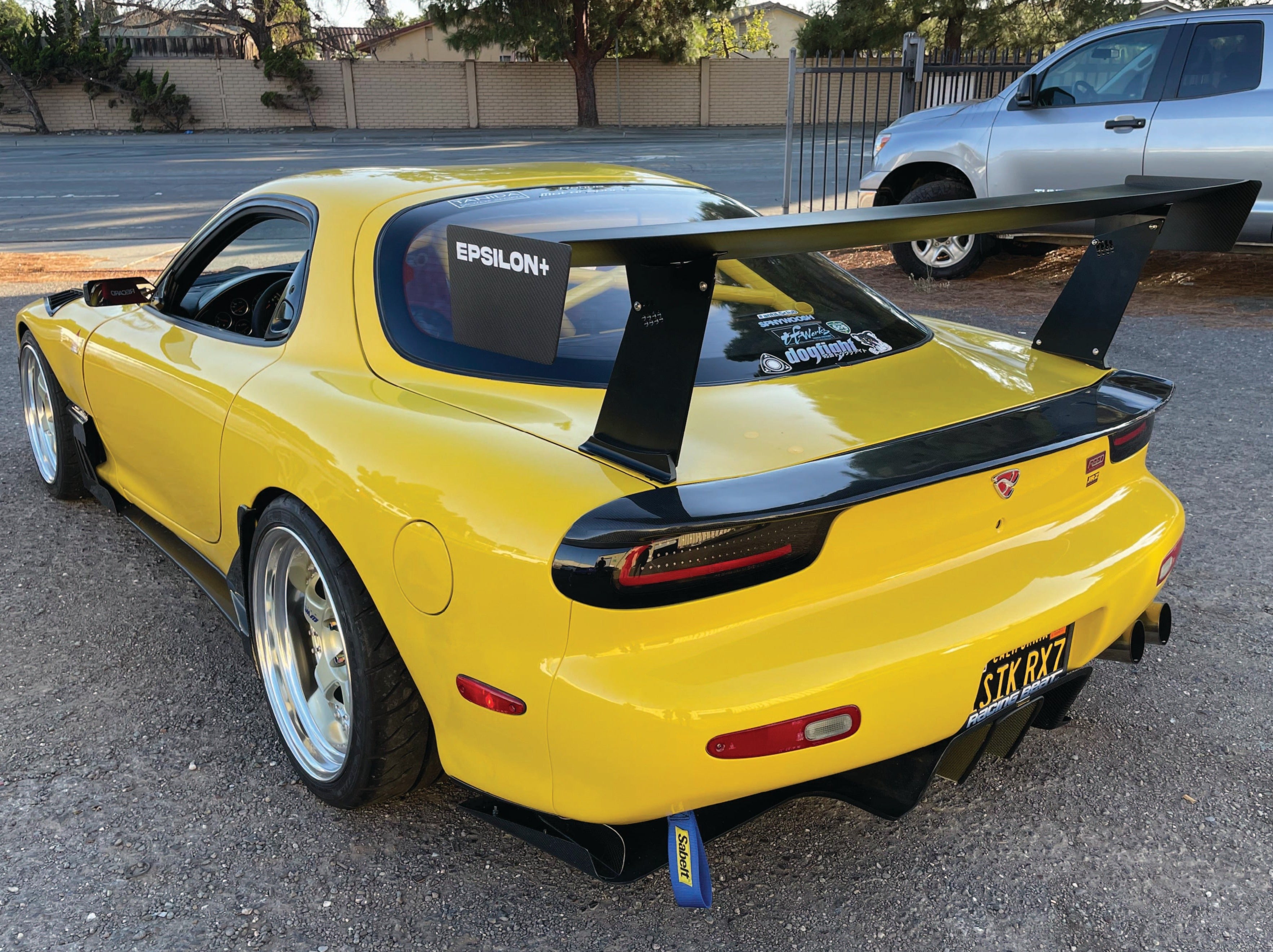

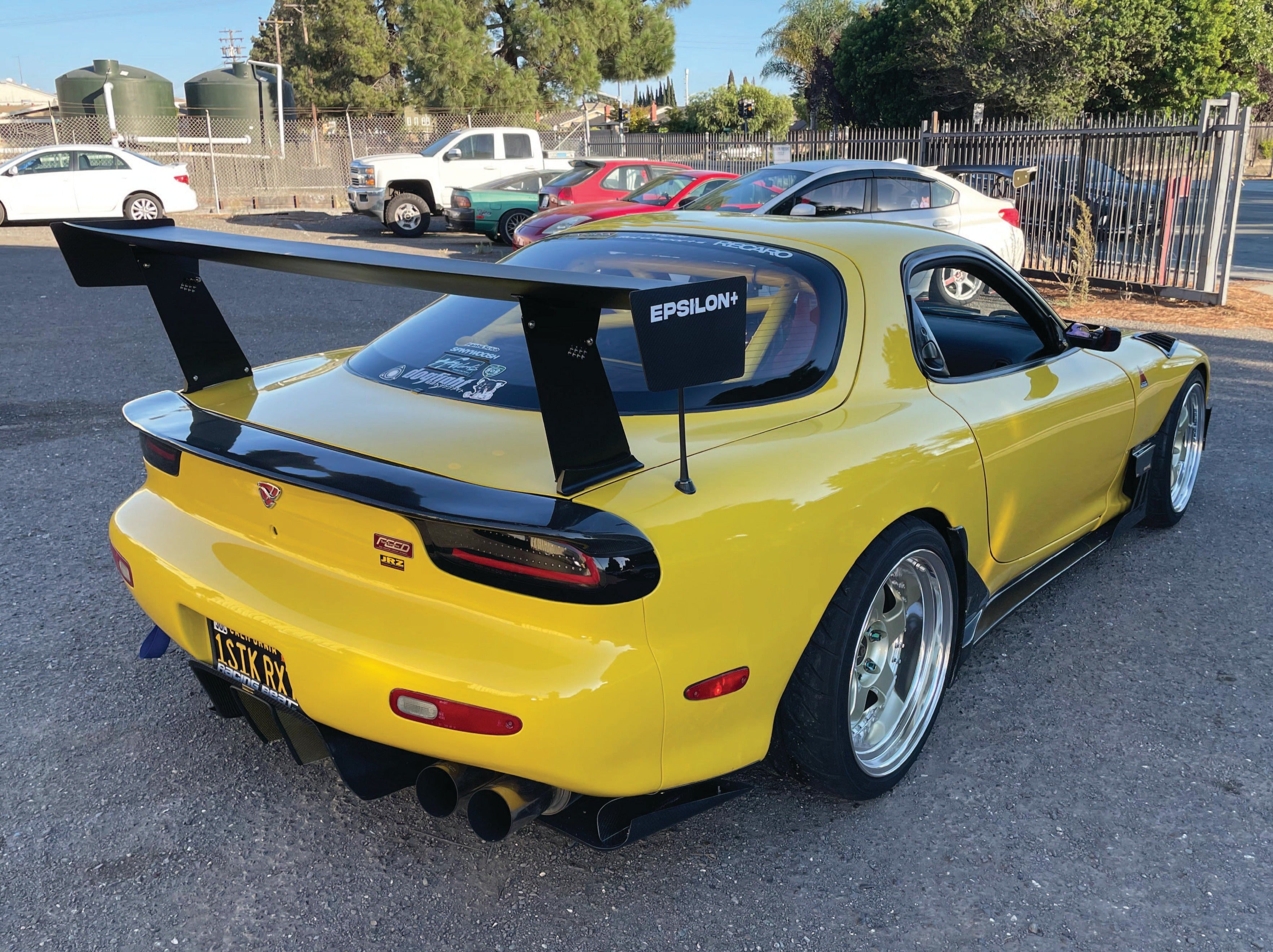

Our flagship product, the carbon fiber GT wing for the FD RX-7.
- Dimensions: Width 1675mm, Chord Length: 360mm
- Race proven: Not just a competitor but a winner! We have set multiple Time Attack lap records with our wing element.

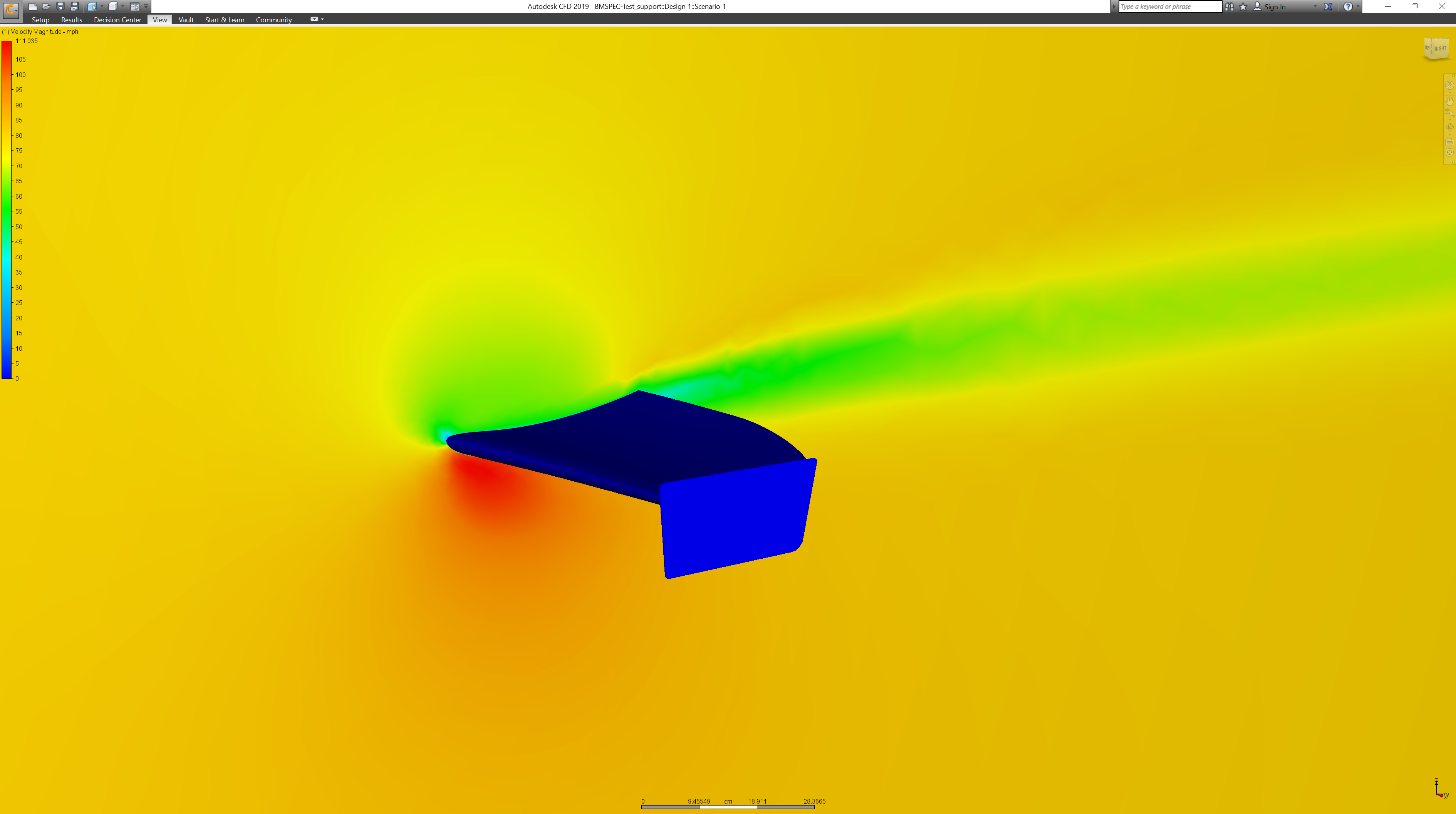

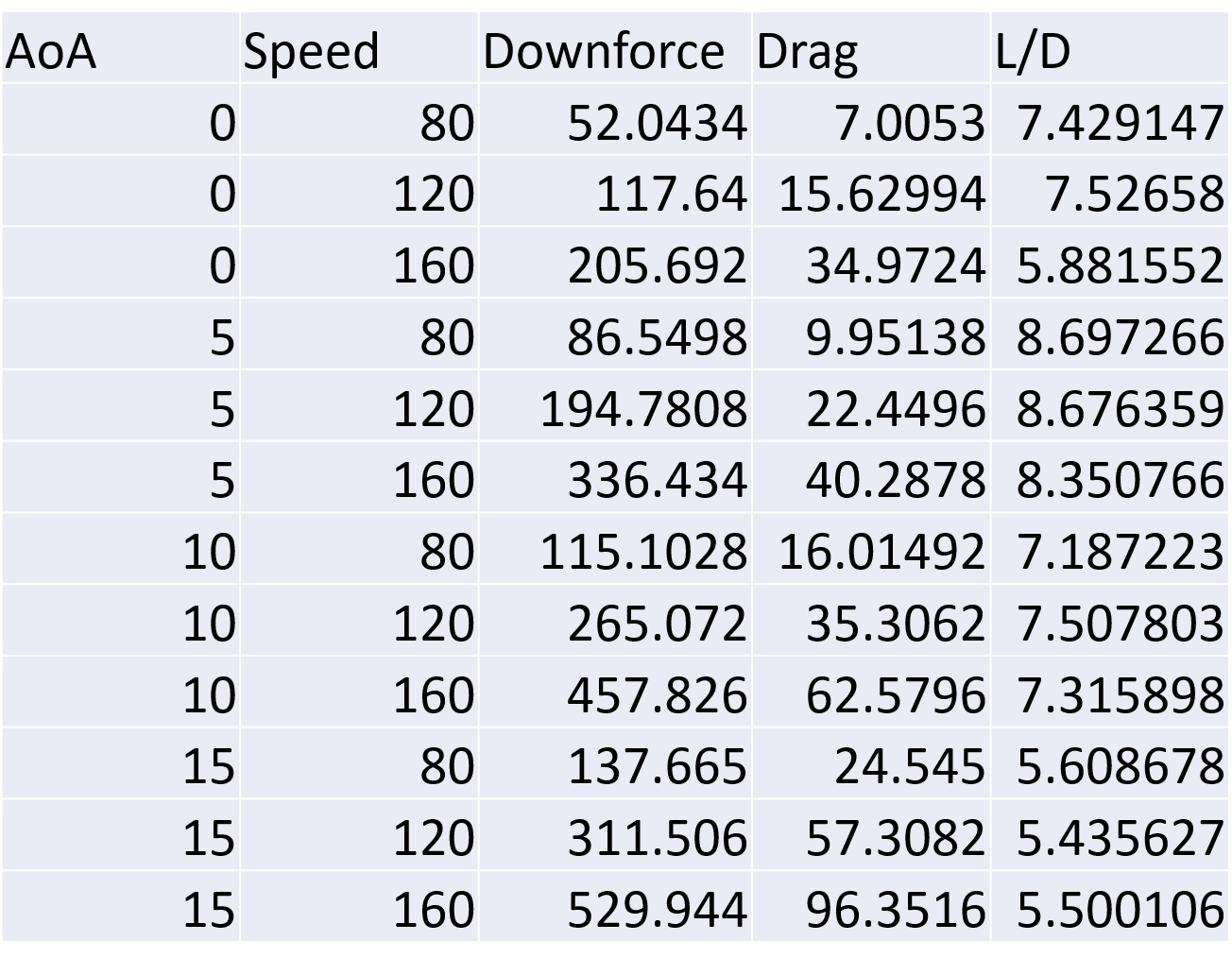

- 2D/3D hybrid profile: Developed in CAD, optimized in CFD, our super efficient wing profile can produce 500+ lbs downforce @160mph with minimal drag. See CFD data in pictures.

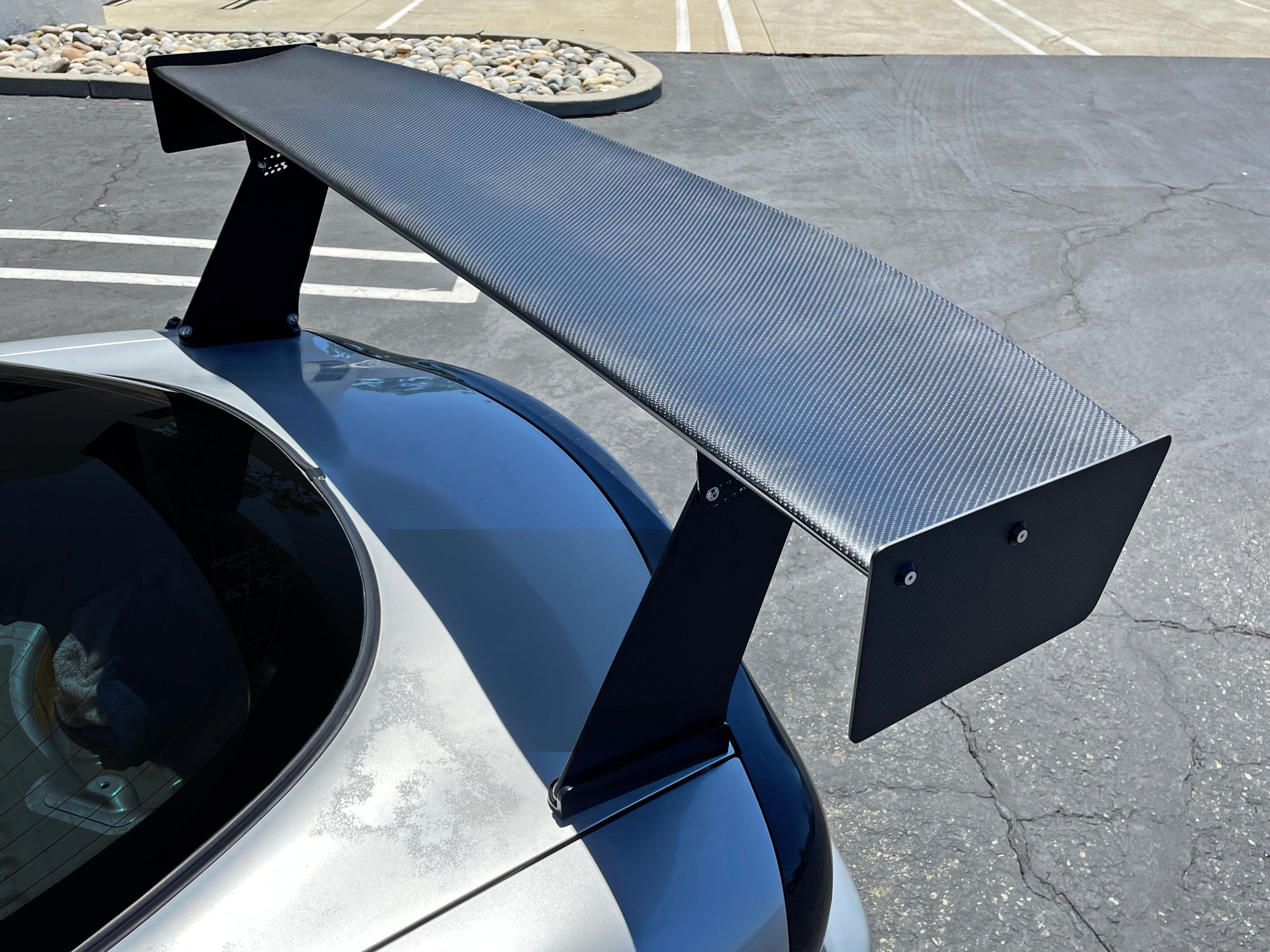

- Light & stiff construction: 100% carbon fiber pre-preg layup around a composite accordion core results in a weight of just 6.5lbs without sacrificing strength.

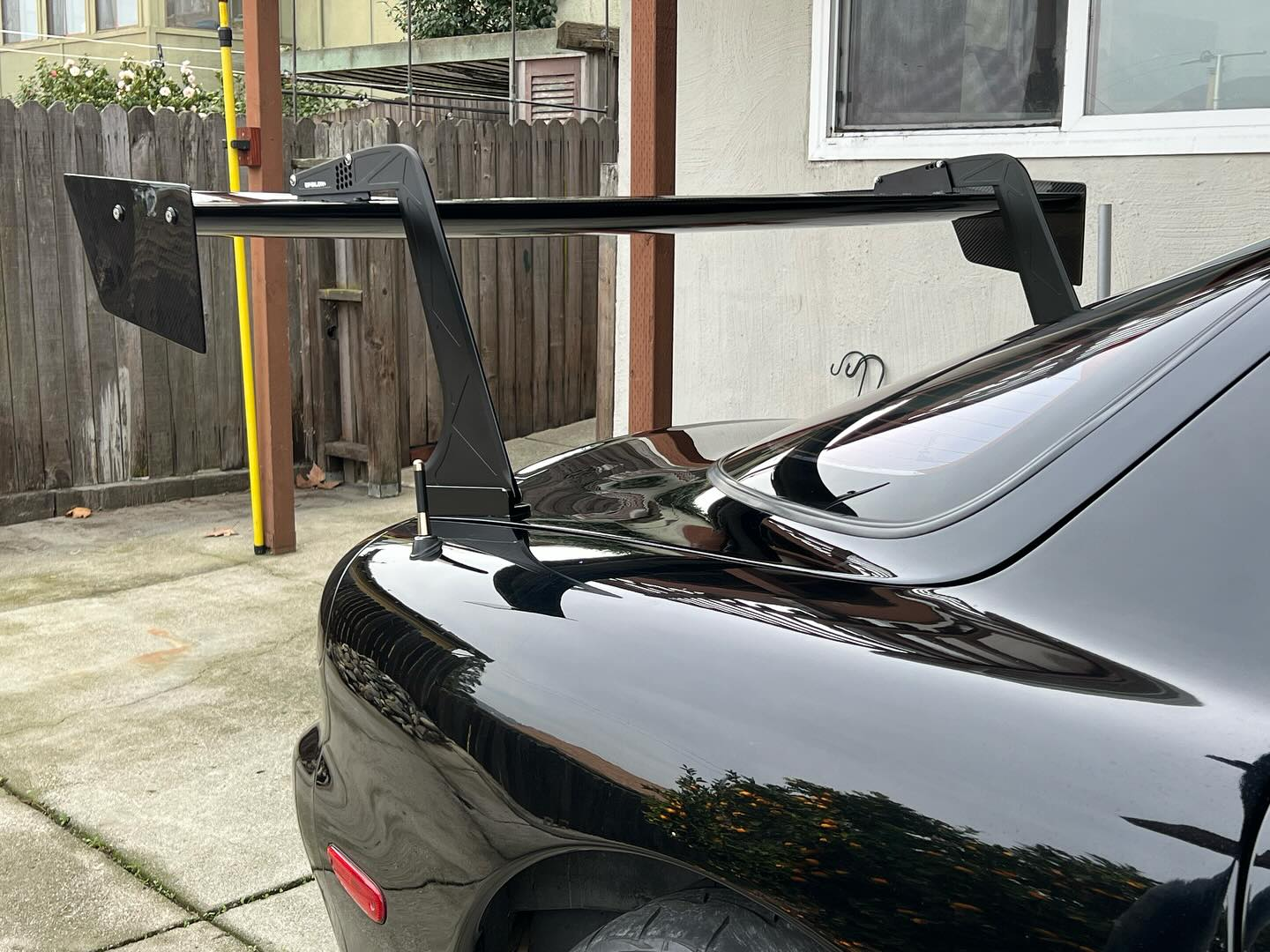

- Fiberglass FRP option now available: Gloss black gelcoat finish, ~11lbs at a much more affordable price point.
- Finely adjustable: Black powder coated aircraft-grade 6061 aluminum wing risers have adjustment holes in 1-degree increments (16 degrees total).

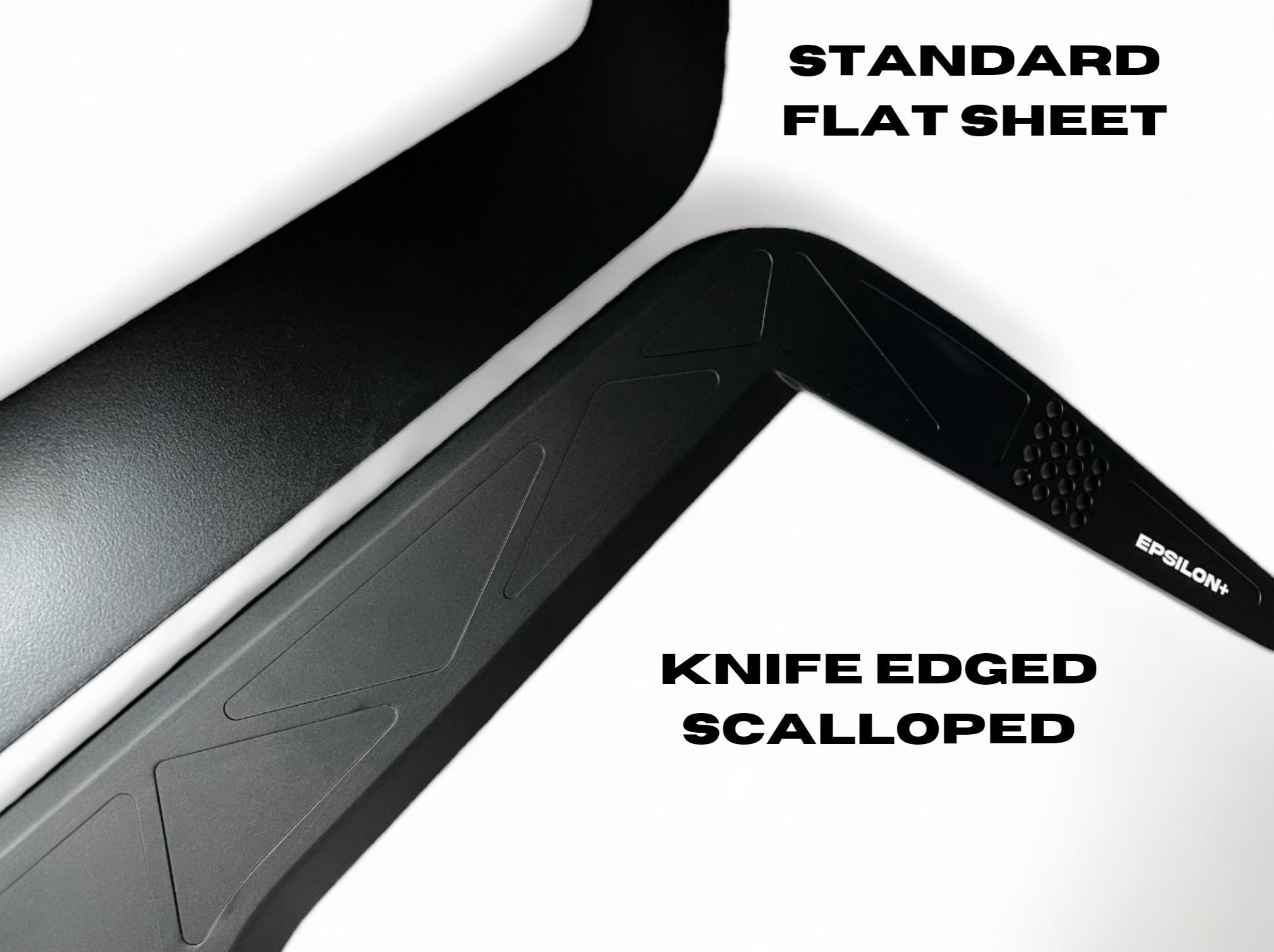

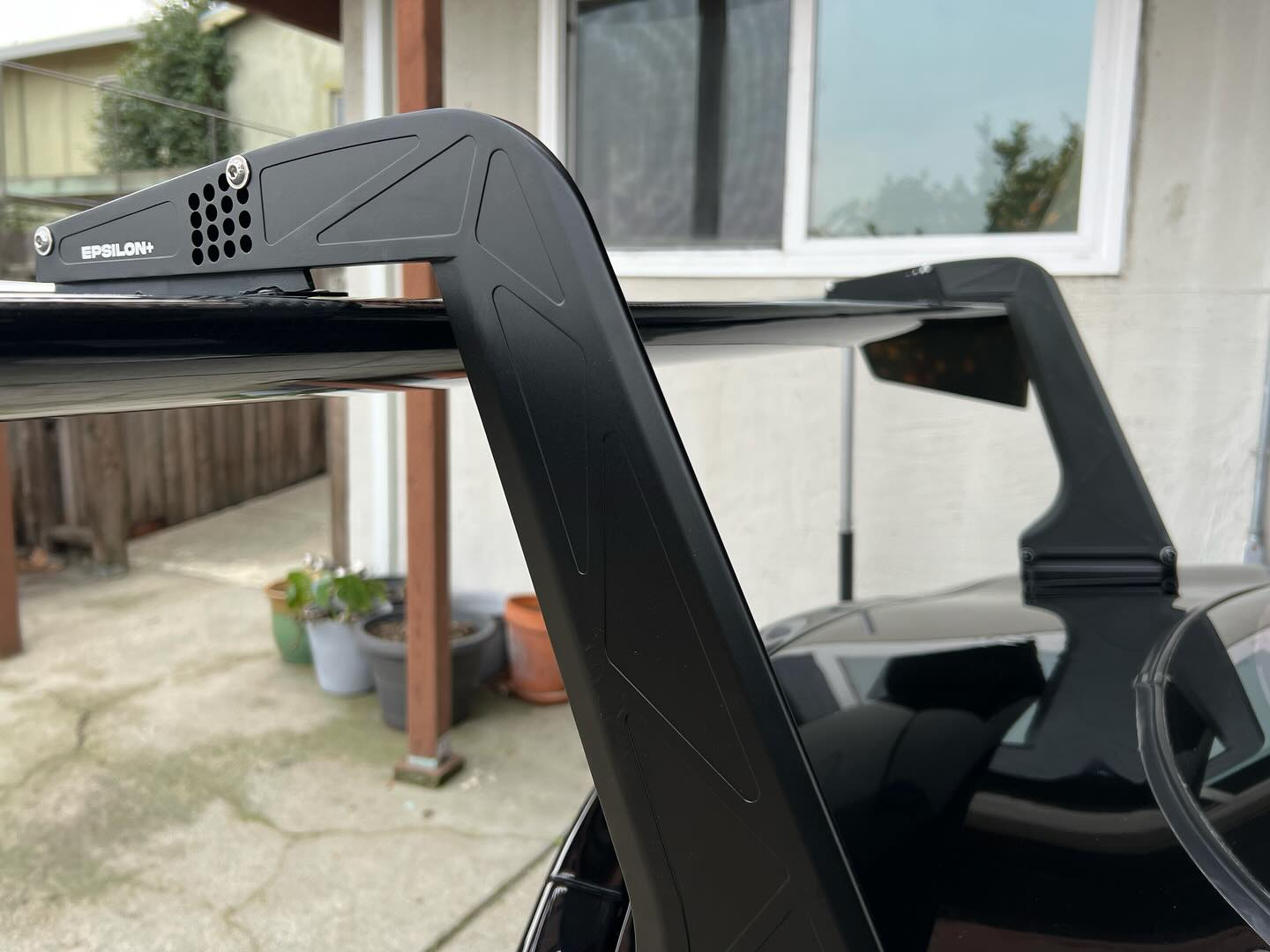

- New for 2024 - swan uprights are machined, knife-edged, pocketed, and chamfered
Special Notes:
- This wing uses the FACTORY '93 outer trunk holes. A template can be provided for wingless customers.
- Carbon fiber motorsport wings are optimized for weight, and come in a matte finish from manufacturing. If you are planning on a lot of outdoor use, consider applying clear coat to maximize the service life of the top coating.
- FRP wings are painted and finished in gloss black single stage. These do not need to be post-treated and are UV-resistant. They come with carbon endplates as standard.

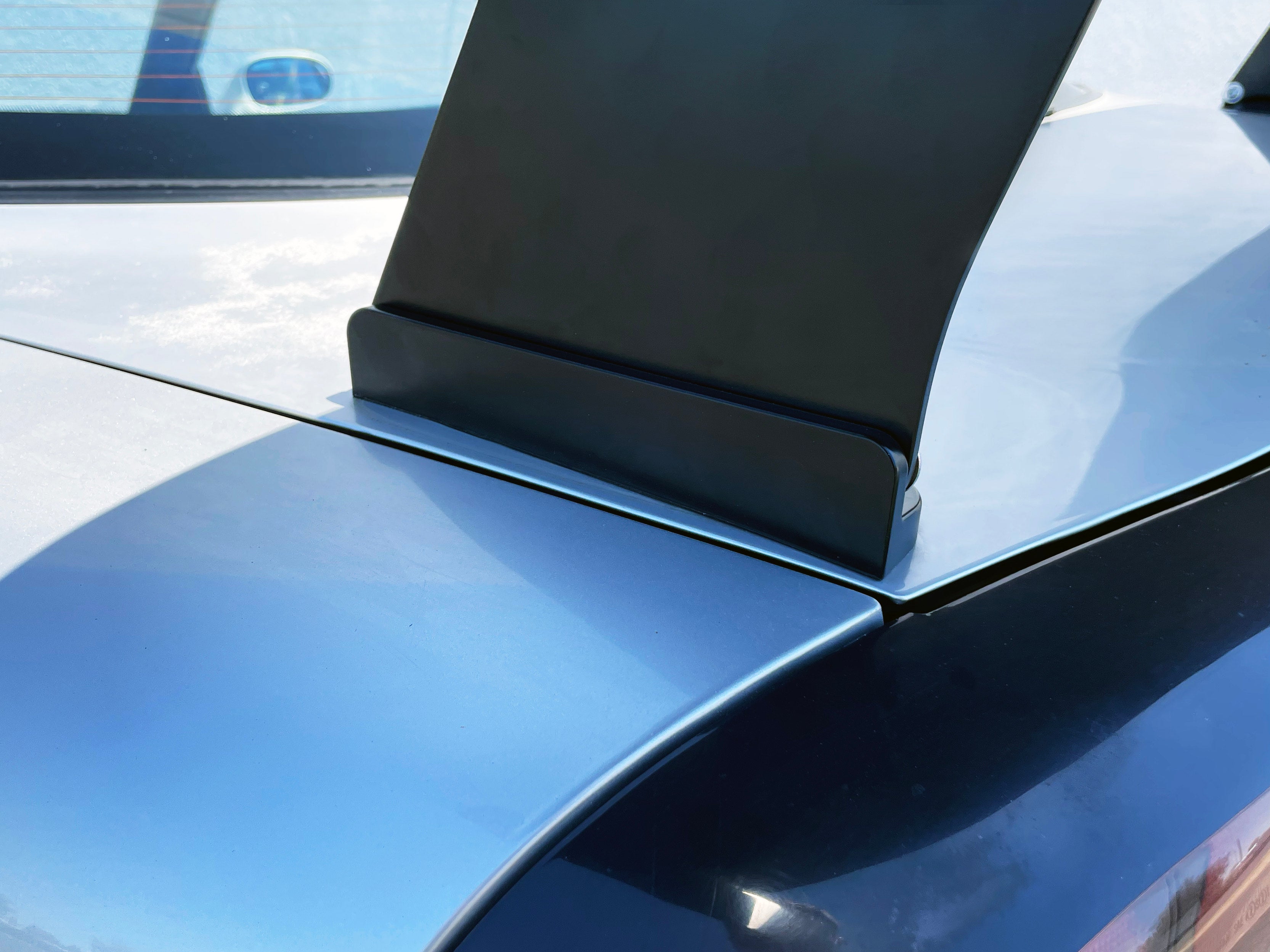

- 5-Axis 7075-Al CNC bases, for minimal exposed hardware. Please make sure to thread-lock all M8 bolts.
- All parts are powder coated black for a durable, professional finish.
- New for 2024 - bases and uprights are now anodized black
