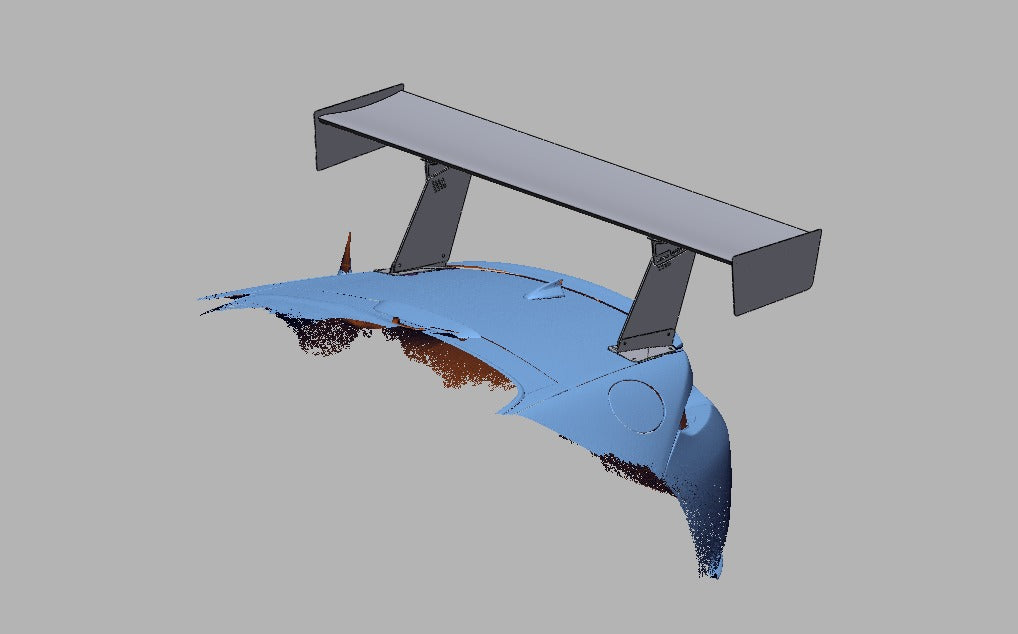

Mazda Miata ND fitted with the 66.5" Epsilon+ TC Wing, angled CAD render

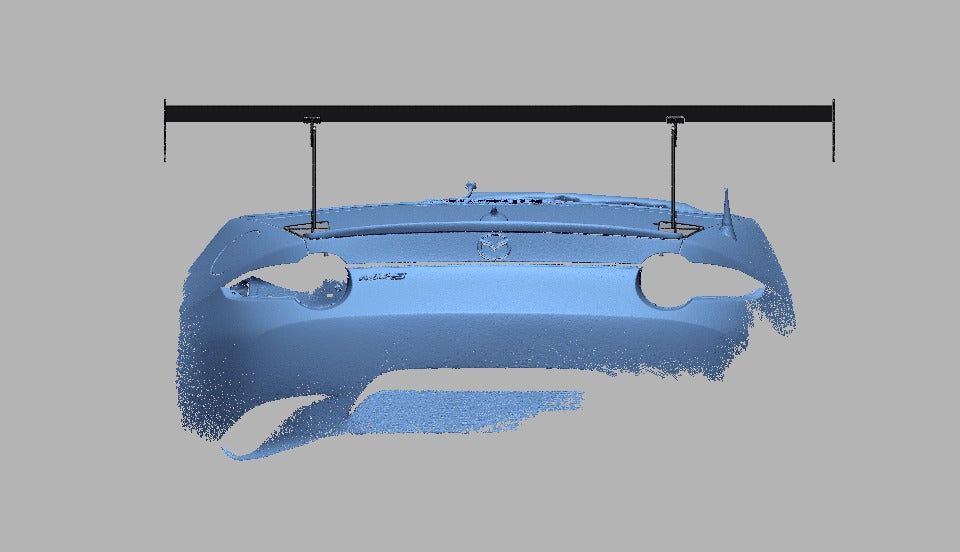

Rear elevation of a Mazda Miata ND with the 66.5" TC Wing, showing the element extending past both rear fenders

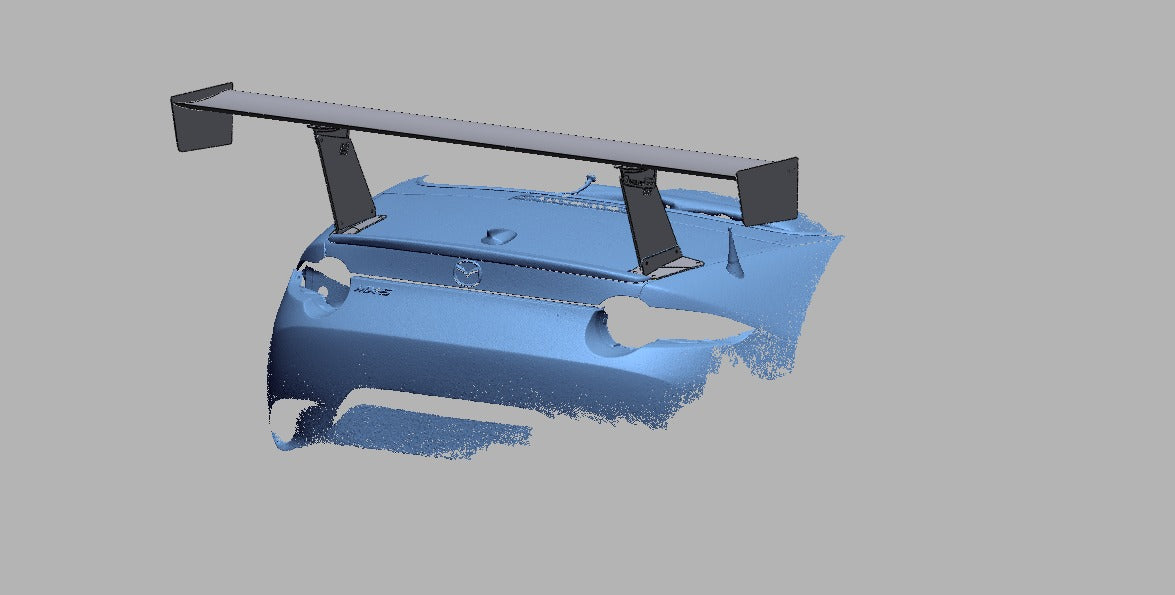

3D scan render of a Mazda Miata ND's rear end with the 66.5" TC wing, rear three-quarter view

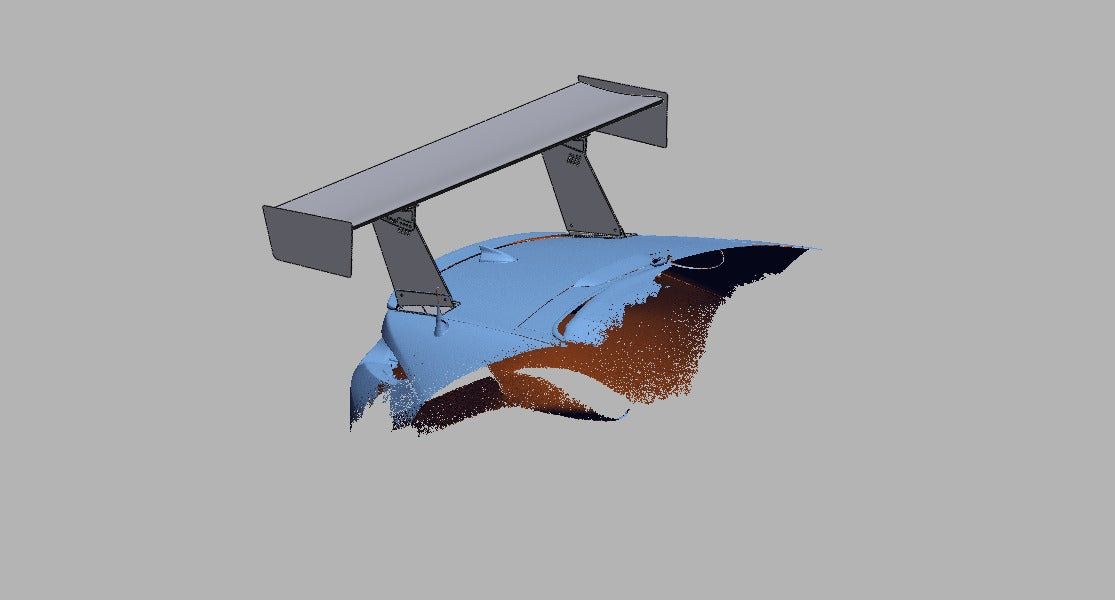

Side profile of the 66.5" TC Wing and its uprights above the ND Miata deck lid

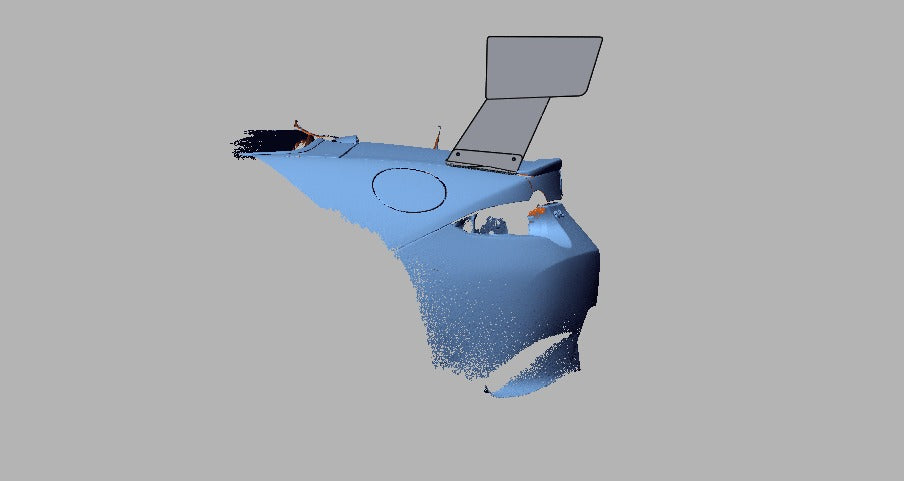

Close-up of the 66.5" TC Wing endplate overhanging the ND Miata quarter panel

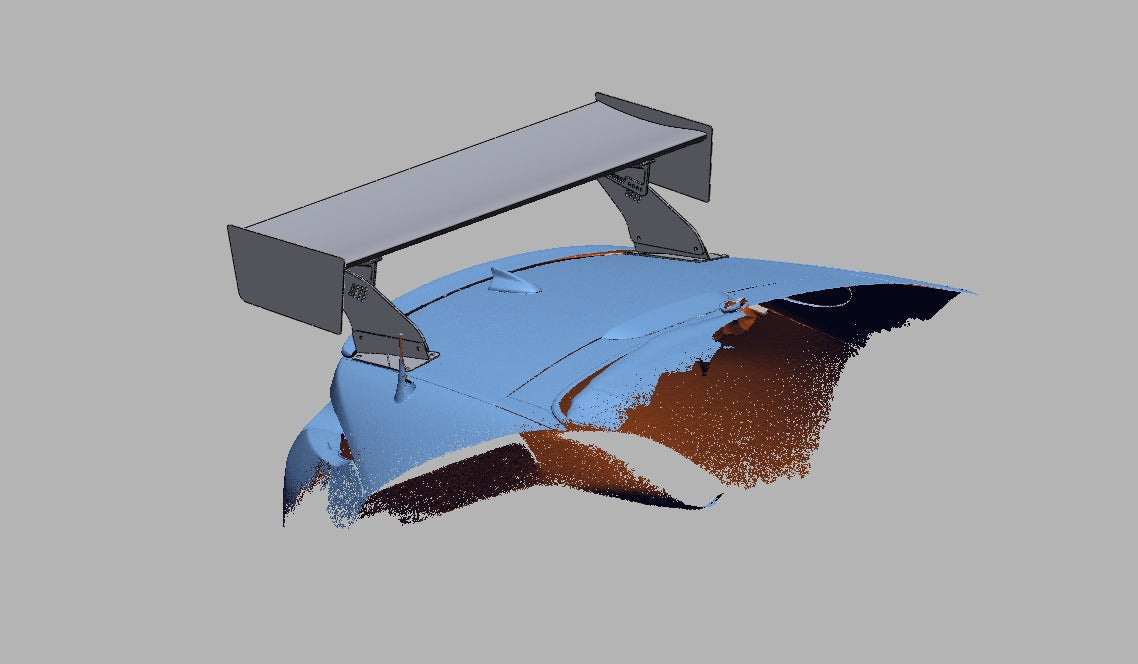

Mazda Miata ND fitted with the 47.5" Epsilon+ TC Wing, rear three-quarter render

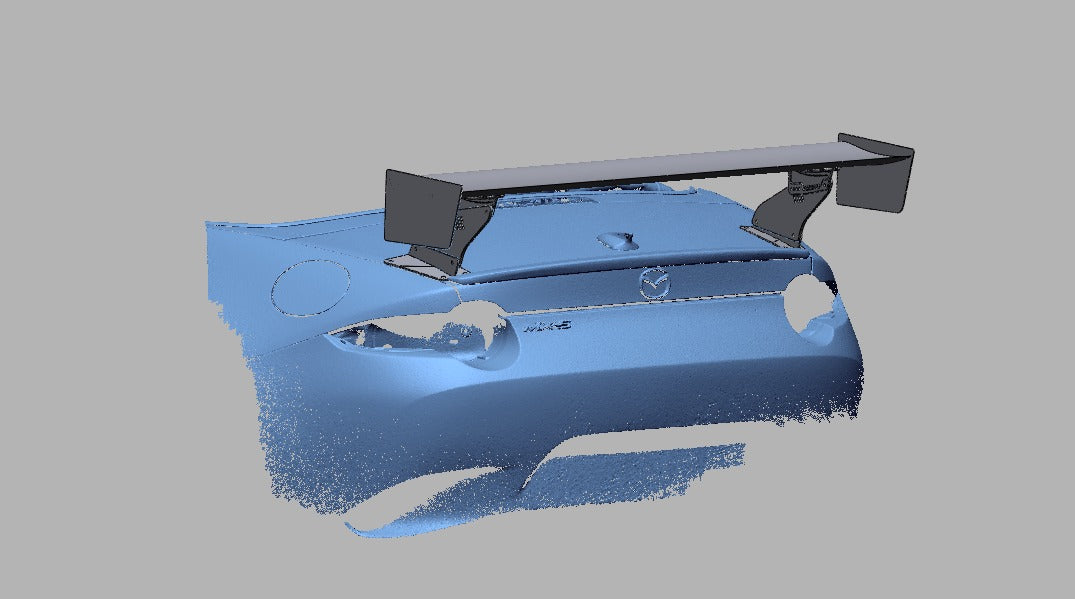

47.5" TC Wing on the ND Miata seen from behind the car, showing endplate spacing

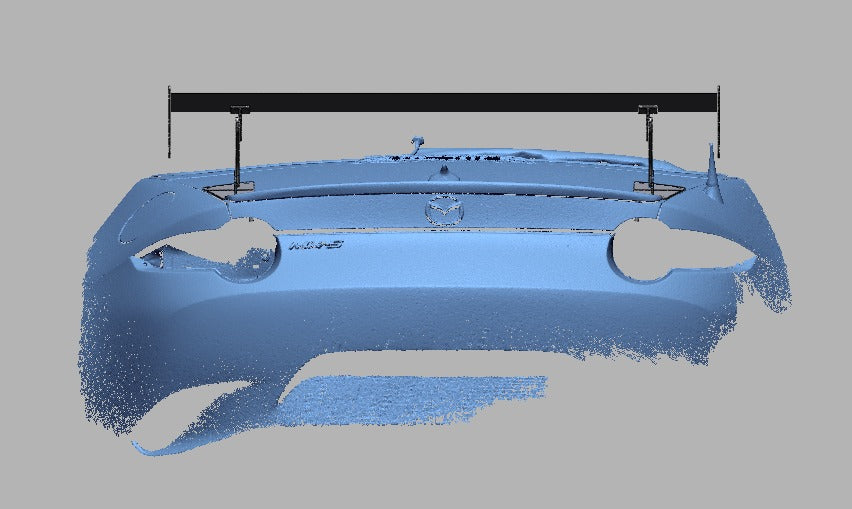

Straight-on rear elevation of the ND Miata with the 47.5" TC Wing mounted

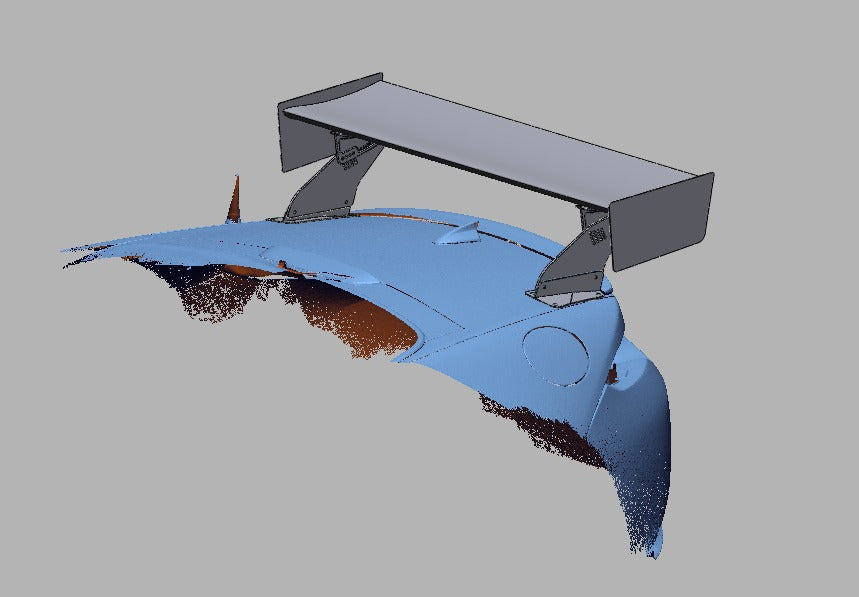

Detail of the 47.5" TC Wing upright and base plate on the ND Miata deck lid

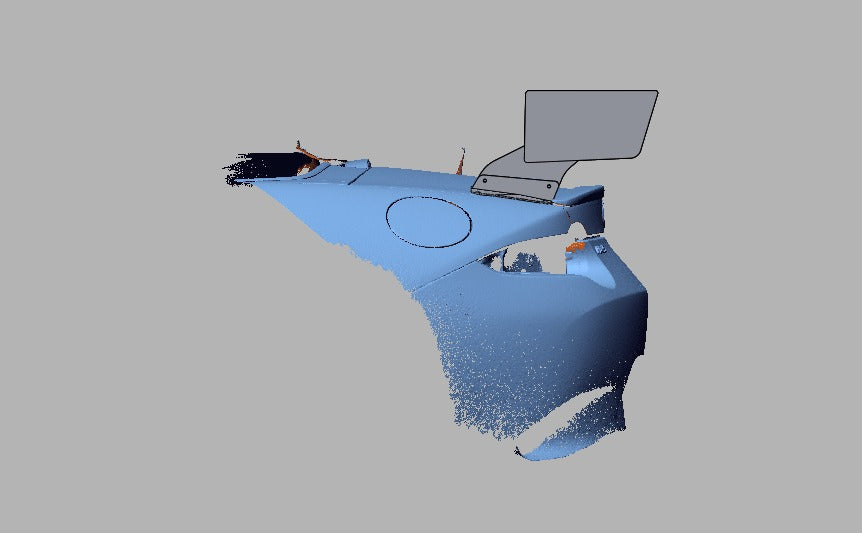

Close-up of the 47.5" TC Wing endplate and mounting hardware on the ND Miata
TC Wing airfoil element, front three-quarter view
Infographic of TC Wing key features and specifications
Stack of Epsilon+ TC wing elements on a shelf, showing the hollow airfoil cross-section
CFD aerodynamic data chart for the TC Wing airfoil
TC Wing center section, CFD flow visualization
CFD pressure contour around the TC wing airfoil at 0 degrees angle of attack
CFD pressure contour around the TC wing airfoil at 15 degrees angle of attack
TC Wing endplate CFD flow visualization
Epsilon+ Aerodynamics

[BACKORDER] TC Wing - Mazda Miata ND

Sale price$850.00
Size: [BACKORDER] 66.5"
Mount Type: Bottom Mount

TC WINGS ARE ON BACKORDER — RESTOCKING END OF Q4 2026 / BEGINNING OF Q1 2027

Complete TC Wing Kit — Mazda Miata ND (2016+)

The Mazda Miata ND TC Wing is a complete wing kit for the ND chassis — wing element, endplates, mounting cradles, and the chassis-specific bases and uprights, all in one part number.

Choose the span that fits your class. The 47.5" is the GLTC-oriented size: at a 10.5" chord it works out to 498.75 sq in, just inside the common 500 sq in limit, so it's the version to run where wing area is capped. The 66.5" is the maximum-downforce size on the same 10.5" chord element — more area in clean air, but at 698.25 sq in it sits well outside a 500 sq in cap.

Also choose between a bottom mount (standard, lower profile) or a swan mount (raised, swan-neck style uprights).

Key Features

  • Direct-fit for the Mazda Miata ND (2016+) — bases and uprights designed around this chassis's mounting geometry.
  • Two spans — 47.5" to stay inside a 500 sq in area cap, or 66.5" for maximum downforce where area isn't capped.
  • Bottom mount or swan mount — pick the upright style that fits your car and class.
  • Complete kit — CFD-optimized TC wing element, endplates, mounting cradles, bases, and uprights.
  • No welding required — installs with a drill and rivets.

What's Included

  • ✅ Included: TC wing element, endplates, mounting cradles, bases, uprights, and mounting hardware matched to the ND chassis.
  • Only need the airfoil itself? The Universal TC Wing is sold separately.

TC Rules Disclaimer

TC RULES DISCLAIMER: 10.5 × 47.5 = 498.75. This is EXTREMELY close to the legal limit, so please be sure you measure yourself to ensure rules compliance due to small variations in cutting and manufacturing. The 66.5" element is 698.25 sq in and will not meet a 500 sq in area cap.

This is a track/racing component. Confirm current WTCC/GLTC aero rules for your class before racing.
